How to Build a GPS Tracking Device Step by Step Guide for Beginners

Building a GPS tracking device is easier than you might think. This guide walks you through each step, from gathering materials to coding and testing, making it perfect for beginners. By the end, you’ll have a working GPS tracker ready to monitor locations in real time.

Key Takeaways

• Understanding GPS basics: Learn how GPS technology works and why it’s essential for tracking devices.
• Essential components: Discover the key parts needed to build a GPS tracker, including modules and microcontrollers.
• Step-by-step assembly: Follow clear instructions to connect hardware and set up your device.
• Programming your tracker: Get simple coding tips to enable location tracking and data transmission.
• Testing and troubleshooting: Identify common issues and solutions to ensure your device works perfectly.
• Practical applications: Understand how to use your GPS tracker for personal, pet, or vehicle tracking.
• Safety and privacy tips: Learn best practices to protect your data and device.

How to Build a GPS Tracking Device Step by Step Guide for Beginners

If you’ve ever wanted to create your own GPS tracking device, you’re in the right place. This guide breaks down the process in simple steps, perfect for beginners. You’ll learn what parts to get, how to assemble them, and how to write the code that makes your tracker work. By the end, you’ll have a functional GPS tracker that you built yourself.

What You Will Learn

• The basics of GPS technology and how it works.
• What components you need to build a GPS tracker.
• How to assemble the hardware step by step.
• How to program the device to send location data.
• Tips for testing and troubleshooting your tracker.

Step 1: Understand the Basics of GPS Tracking

Before diving into hardware and code, it’s helpful to know how GPS tracking works. GPS stands for Global Positioning System. It uses satellites orbiting the Earth to pinpoint your device’s location by calculating signals from at least four satellites. Your GPS tracking device receives these signals and determines its coordinates (latitude and longitude).

Once your device knows its location, it can send the data via cellular networks, Wi-Fi, or Bluetooth to your phone or computer. This is how you can track the device in real time.

Step 2: Gather Your Components

Here’s what you’ll need to build a basic GPS tracking device:

• GPS Module: This receives satellite signals and provides location data. Popular modules include the NEO-6M or NEO-M8N.
• Microcontroller: Acts as the brain of your device. Arduino Uno or ESP32 are beginner-friendly options.
• GSM/GPRS Module: Allows your device to send location data over cellular networks. SIM800L is a common choice.
• SIM Card: Required for cellular communication. Use a prepaid SIM with data enabled.
• Power Supply: A rechargeable lithium battery or USB power bank to power your device.
• Connecting Wires and Breadboard: For connecting components without soldering.
• Optional – Enclosure: To protect your device once assembled.

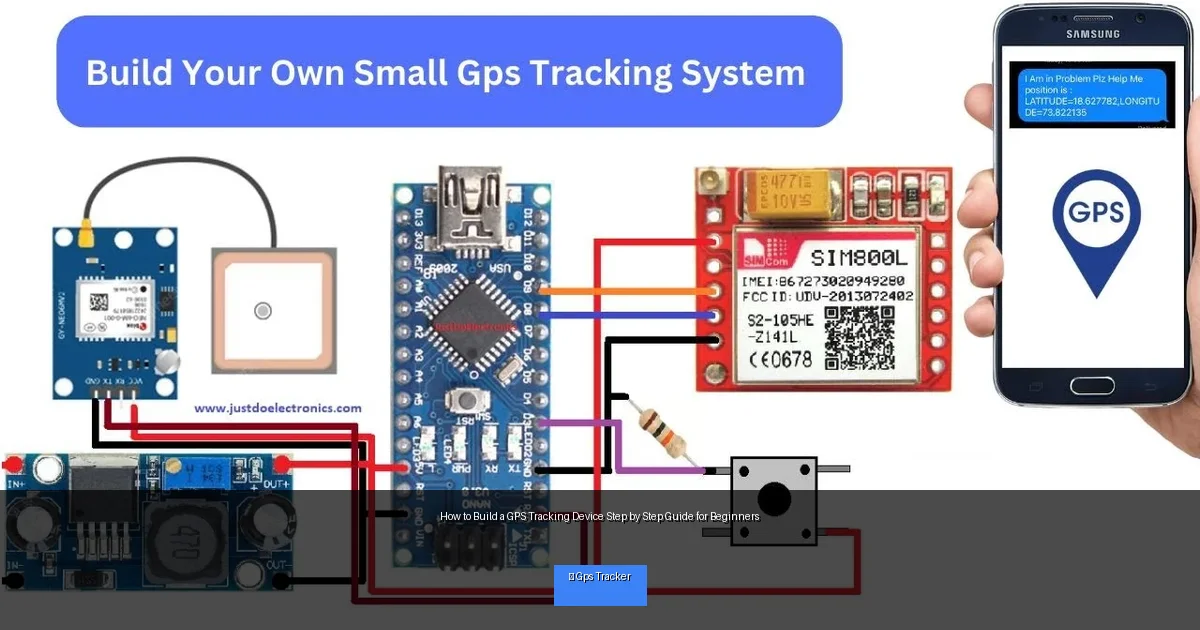

Step 3: Assemble the Hardware

Connect the GPS Module to the Microcontroller

Start by wiring the GPS module to your microcontroller. The GPS module typically has pins labeled VCC, GND, TX, and RX.

• Connect VCC to 3.3V or 5V on the microcontroller (check module specs).
• Connect GND to ground.
• Connect TX (GPS) to RX (microcontroller).
• Connect RX (GPS) to TX (microcontroller).

This setup allows the microcontroller to receive GPS data via serial communication.

Connect the GSM/GPRS Module

Next, wire the GSM module to your microcontroller:

• Connect VCC and GND as per the module’s voltage requirements.
• Connect the module’s TX pin to the microcontroller’s RX pin.
• Connect the module’s RX pin to the microcontroller’s TX pin.
• Insert your SIM card into the GSM module.

Make sure the GSM module is powered properly, as it can draw significant current during transmission.

Power Up Your Device

Use a reliable power source, such as a lithium battery or USB power bank. Connect the power supply to your microcontroller and modules. Always double-check voltage levels to avoid damage.

Step 4: Program Your GPS Tracker

Now that your hardware is ready, it’s time to program the microcontroller. You’ll write code that:

• Reads GPS data (latitude, longitude, time).
• Connects to the cellular network via GSM module.
• Sends the location data to a server, your phone, or via SMS.

Set Up Your Development Environment

Install the Arduino IDE (if using Arduino) or appropriate software for your microcontroller. Add necessary libraries such as:

• TinyGPS++ or NeoGPS for parsing GPS data.
• SoftwareSerial for communicating with GPS and GSM modules on different pins.

Sample Code Overview

The code will:

• Initialize serial communication with GPS and GSM modules.
• Read GPS coordinates.
• Send coordinates via SMS or HTTP POST to a server.

Here’s a simplified example outline:


#include
#include

TinyGPSPlus gps;
SoftwareSerial gpsSerial(4, 3); // RX, TX for GPS
SoftwareSerial gsmSerial(7, 8); // RX, TX for GSM

void setup() {
  Serial.begin(9600);
  gpsSerial.begin(9600);
  gsmSerial.begin(9600);
  // Initialize GSM module here
}

void loop() {
  while (gpsSerial.available() > 0) {
    gps.encode(gpsSerial.read());
    if (gps.location.isUpdated()) {
      float lat = gps.location.lat();
      float lng = gps.location.lng();
      sendLocation(lat, lng);
    }
  }
}

void sendLocation(float lat, float lng) {
  // Code to send SMS or HTTP request via GSM module
}

Step 5: Test Your GPS Tracking Device

Once programmed, test your device outdoors where it can get a clear GPS signal.

• Check if GPS coordinates are received correctly.
• Verify that location data is sent via SMS or uploaded to your server.
• Use a smartphone or computer to track the device in real time.

If the device doesn’t work, review wiring and code carefully.

Troubleshooting Tips

• No GPS Signal: Move outdoors, away from tall buildings or metal structures.
• GSM Module Not Connecting: Ensure SIM card is active and has data/SMS enabled.
• Incorrect Coordinates: Check if GPS module is fully initialized before reading data.
• Power Issues: Use a stable power supply; GSM modules require bursts of higher current.

Step 6: Enclose and Deploy Your Device

Once everything works, place your device in a protective case. Use a weatherproof enclosure if you plan to track outdoors. Make sure the antennae for GPS and GSM modules are positioned correctly for best reception.

Practical Applications and Next Steps

You can customize your GPS tracking device for many uses:

• Track personal belongings like backpacks or luggage.
• Monitor pets during walks.
• Keep an eye on vehicles or bicycles.
• Integrate with apps or online dashboards for real-time tracking.

As you get comfortable, try adding features like:

• Geofencing alerts.
• Battery status monitoring.
• Data logging to SD cards.

Conclusion

Building a GPS tracking device from scratch is a rewarding project that combines hardware and software skills. With this step-by-step guide, beginners can successfully create their own tracker and explore endless possibilities. Remember to be patient, follow instructions carefully, and enjoy the learning process. Soon, you’ll have a custom GPS tracker ready to use for your projects or personal needs.
